• ASPHALT ANCHORS!

    Install anything directly to asphalt.  Drill a hole, inject grout, drop in the anchor and use it in 15 minutes!

    No need to replace asphalt with concrete, wait 2 days for the concrete to cure then install concrete anchors.

  • 1

ANCHORING TO ASPHALT

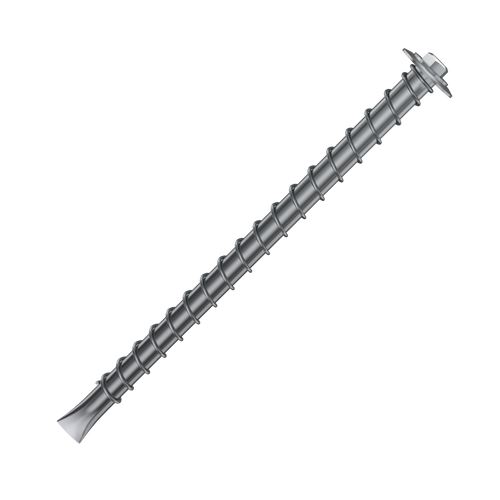

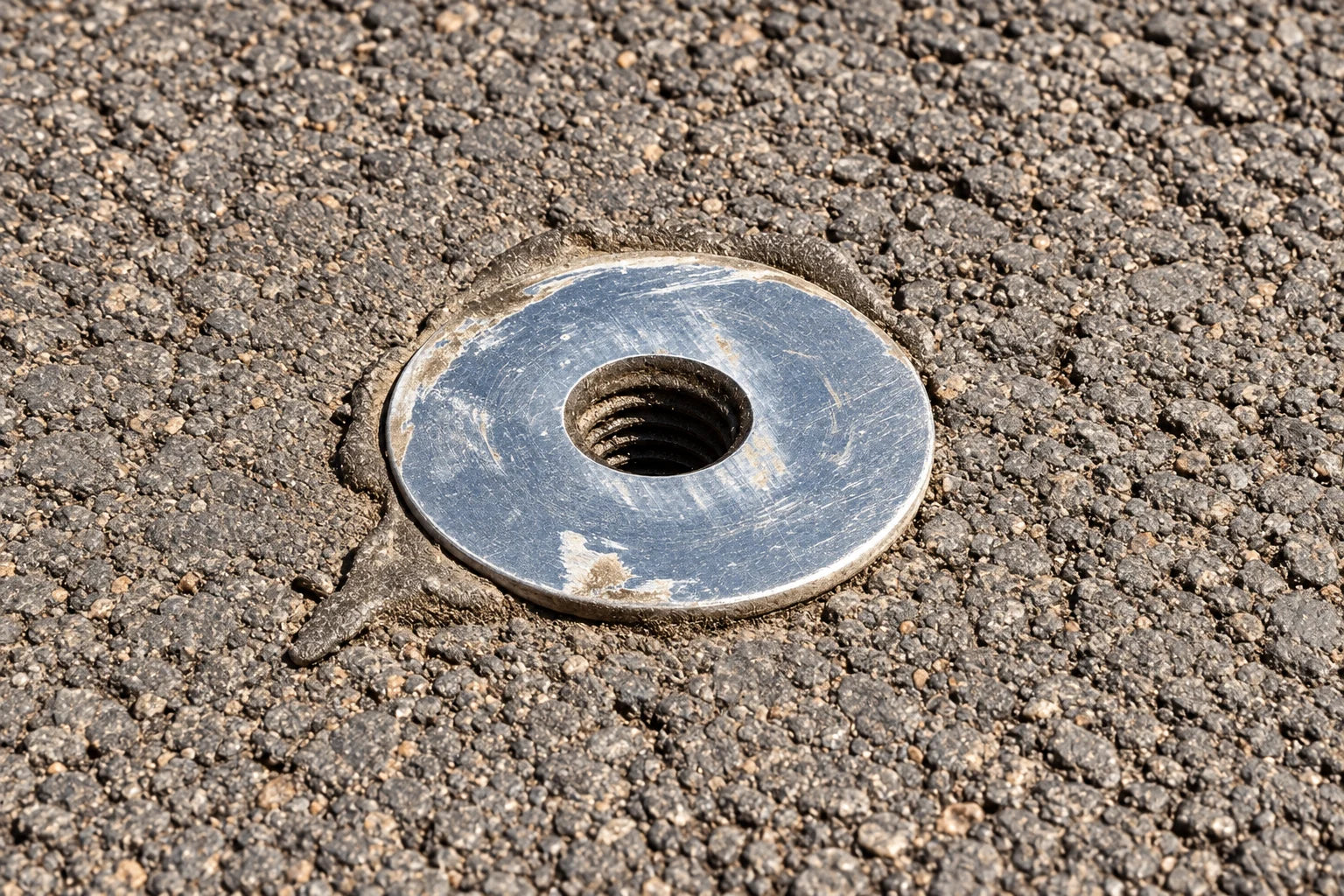

BoltHoldSP asphalt fastener logo 125px   is a family of anchors specifically designed for asphalt. The anchors are flush-mounted to the asphalt and provide a clean female thread for attaching bolts to the anchors.

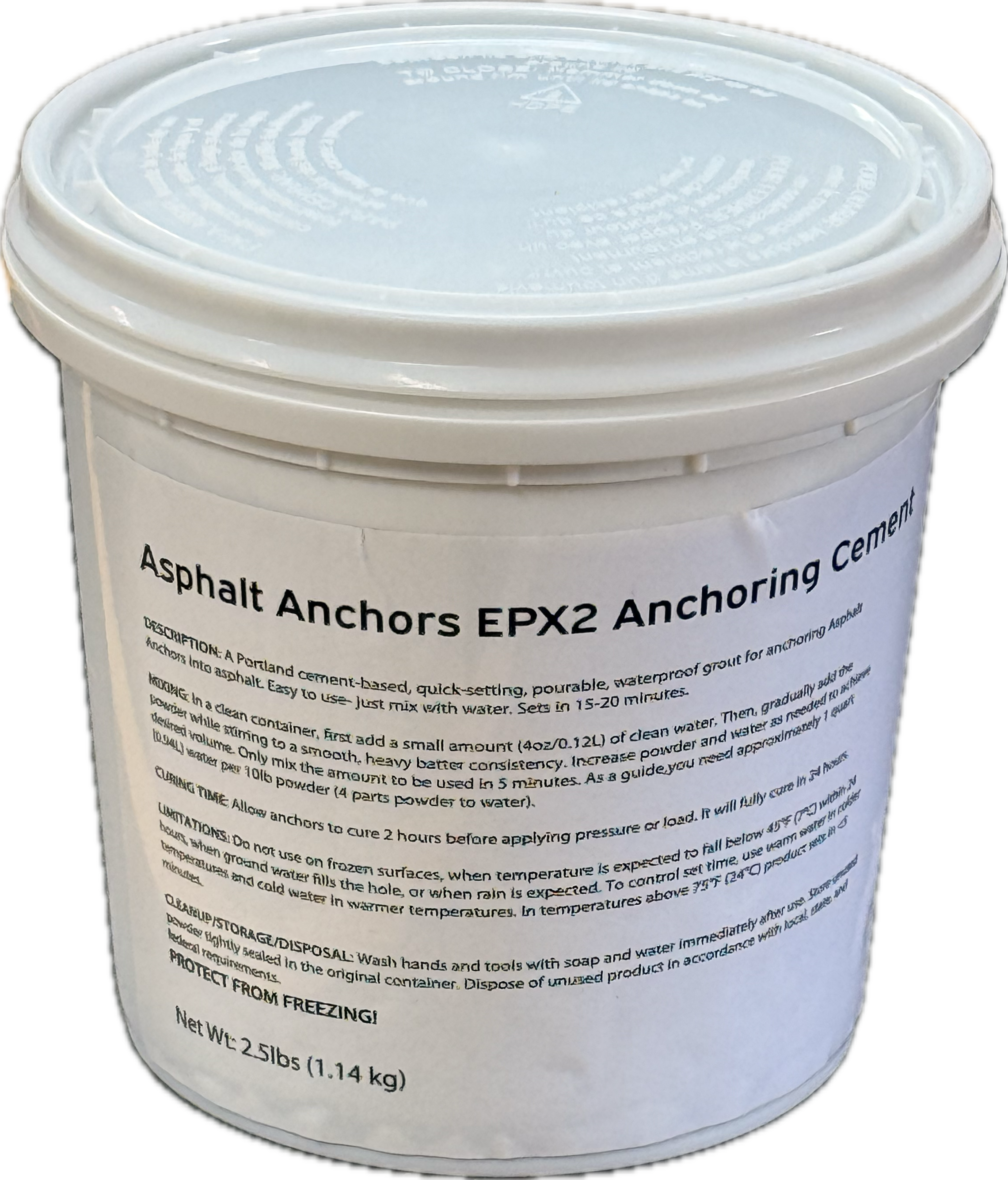

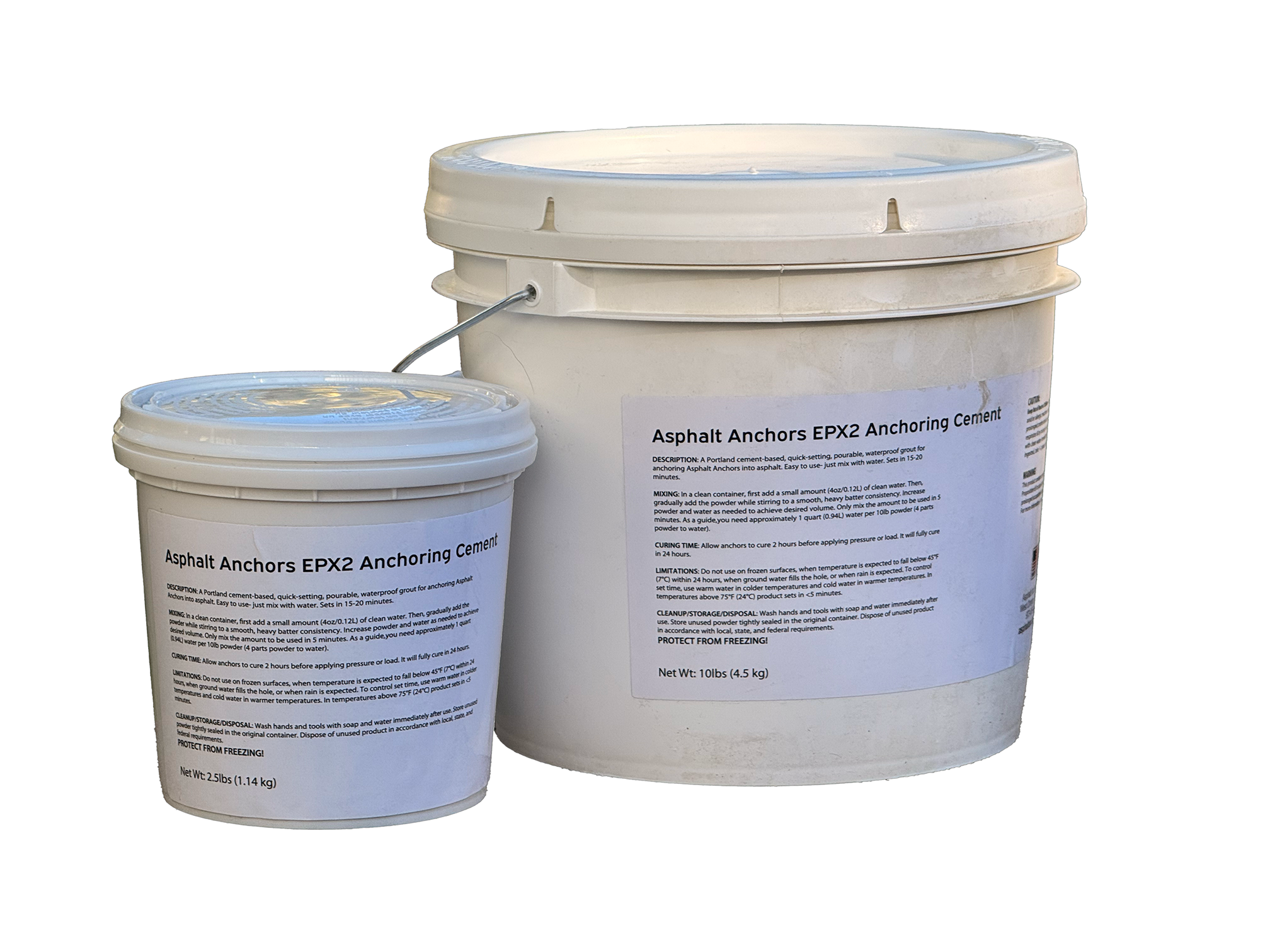

Installation requires drilling a hole and filling it with our inexpensive grout (EPX2), then pushing the anchor in until it is flush with the asphalt surface.  The grout hardens in 15 minutes allowing immediate installation and use.

Model SP10 SP12 SP18
Pull Rating, lb.  1,500  2,000  2,500
Shear Rating, ls.  1,000  1,500  2,000
Torque Rating, lb-in  220  220  280
Thread 3/8"-16  3/8"-16  7/16"-14
Thread depth 2.5"  2.5"  2.5"
Anchor Length 6"  12"  12"
Drill Hole 7/8"  7/8"  1"
SKU (part number) 01-6310.38  01-6315.38B   01-6318.716



BoltHold asphalt anchors are manufactured by the Asphalt Anchors Group of Designated Parking Corp.



For information, please browse our Library and FAQ

For a solution we offer, please look at our Products

For applications , see  Applications and Blog

For prices and shipping, go to our online store

For customers' comments, here is a link

If you do not see what you are looking for, please email us



SP1X-EPX2 275H

Questions about asphalt anchors or asphalt fasteners -- call or email us

How to Install a BoltHold Anchor

APPLICATIONS

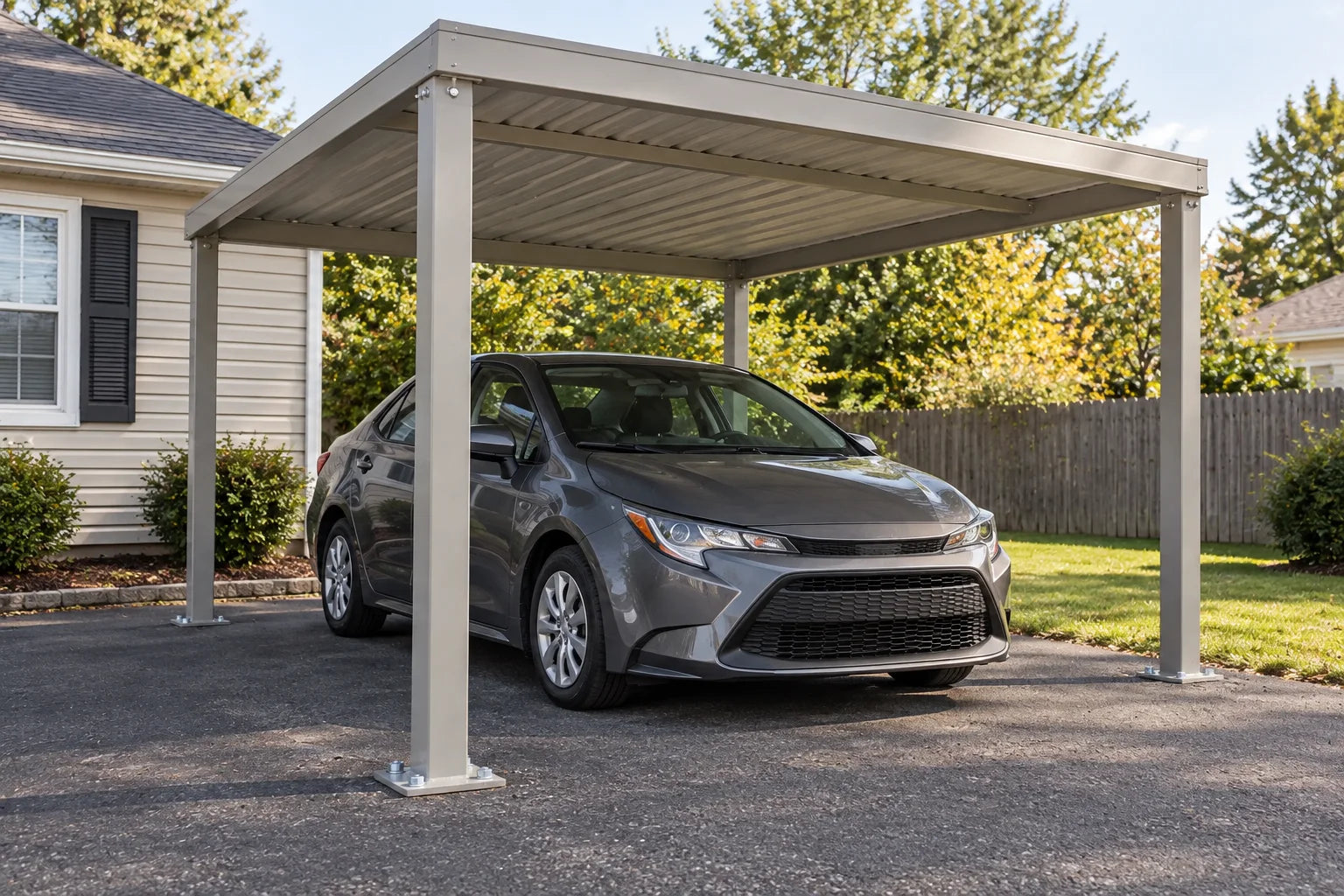

BoltHold anchors have been used in hundreds of unique applications. Listed below are some of the more common applications. Click on highlighted applications for more details.

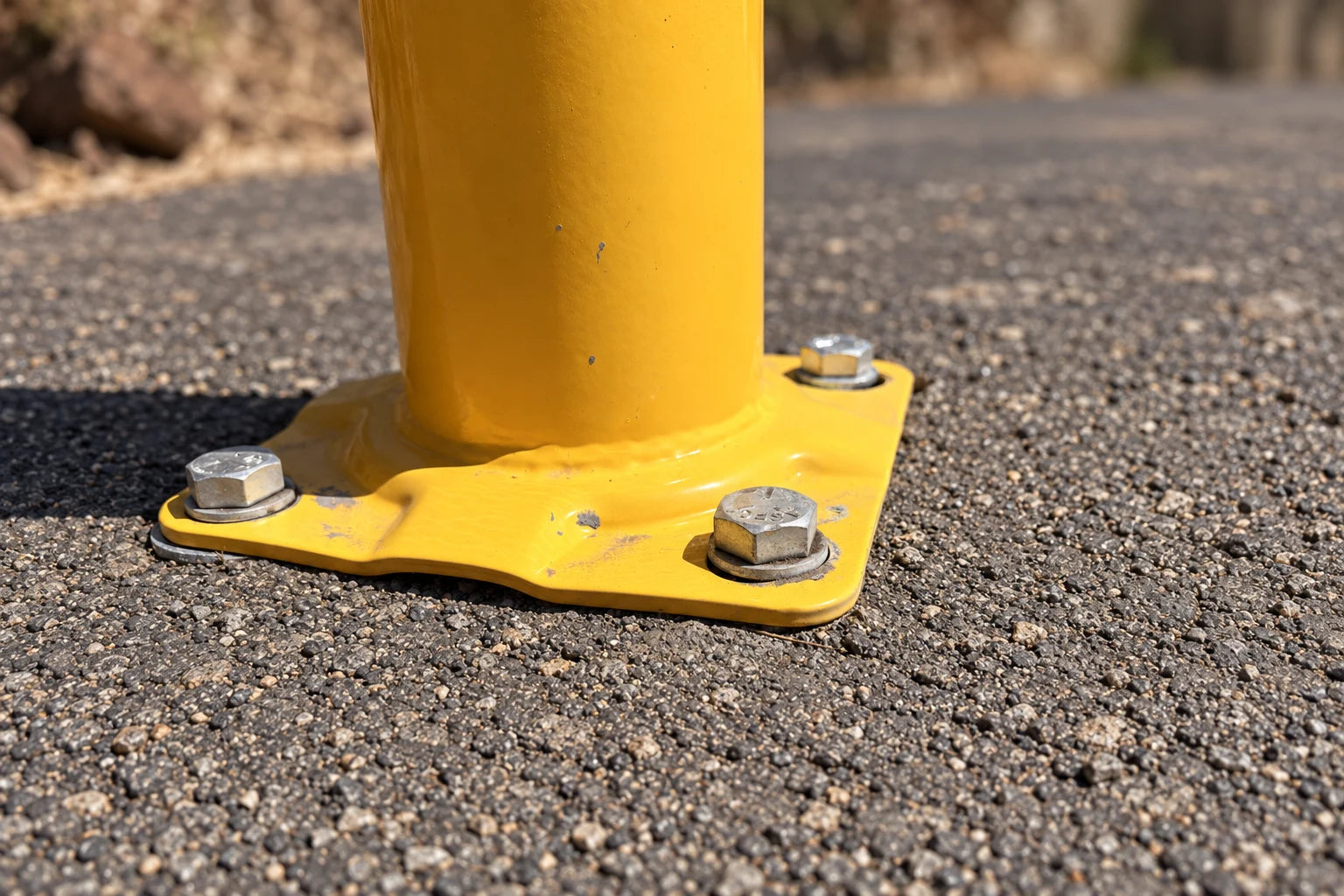

  • Shopping cart corrals
  • Street Lights

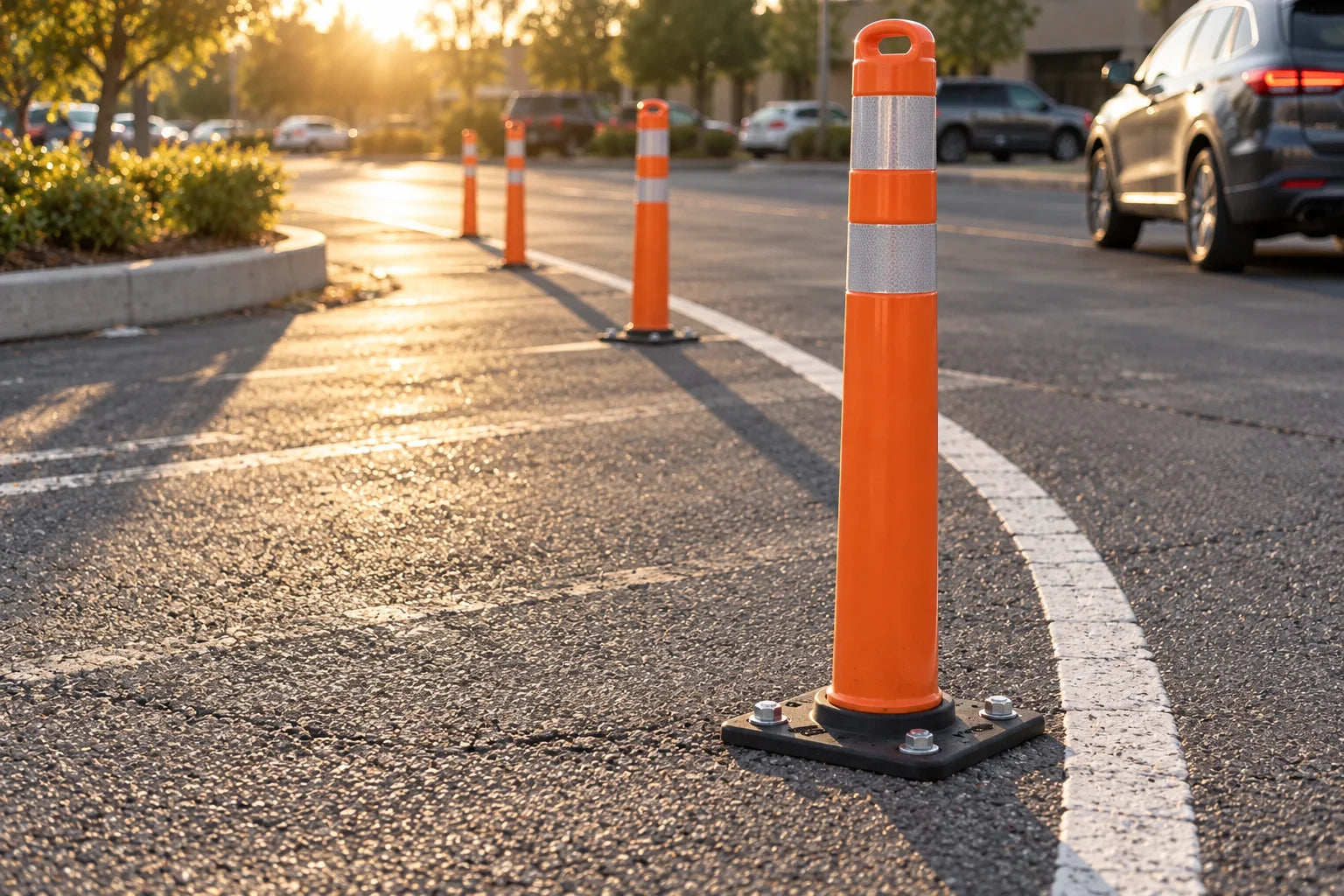

  • Traffic Signs

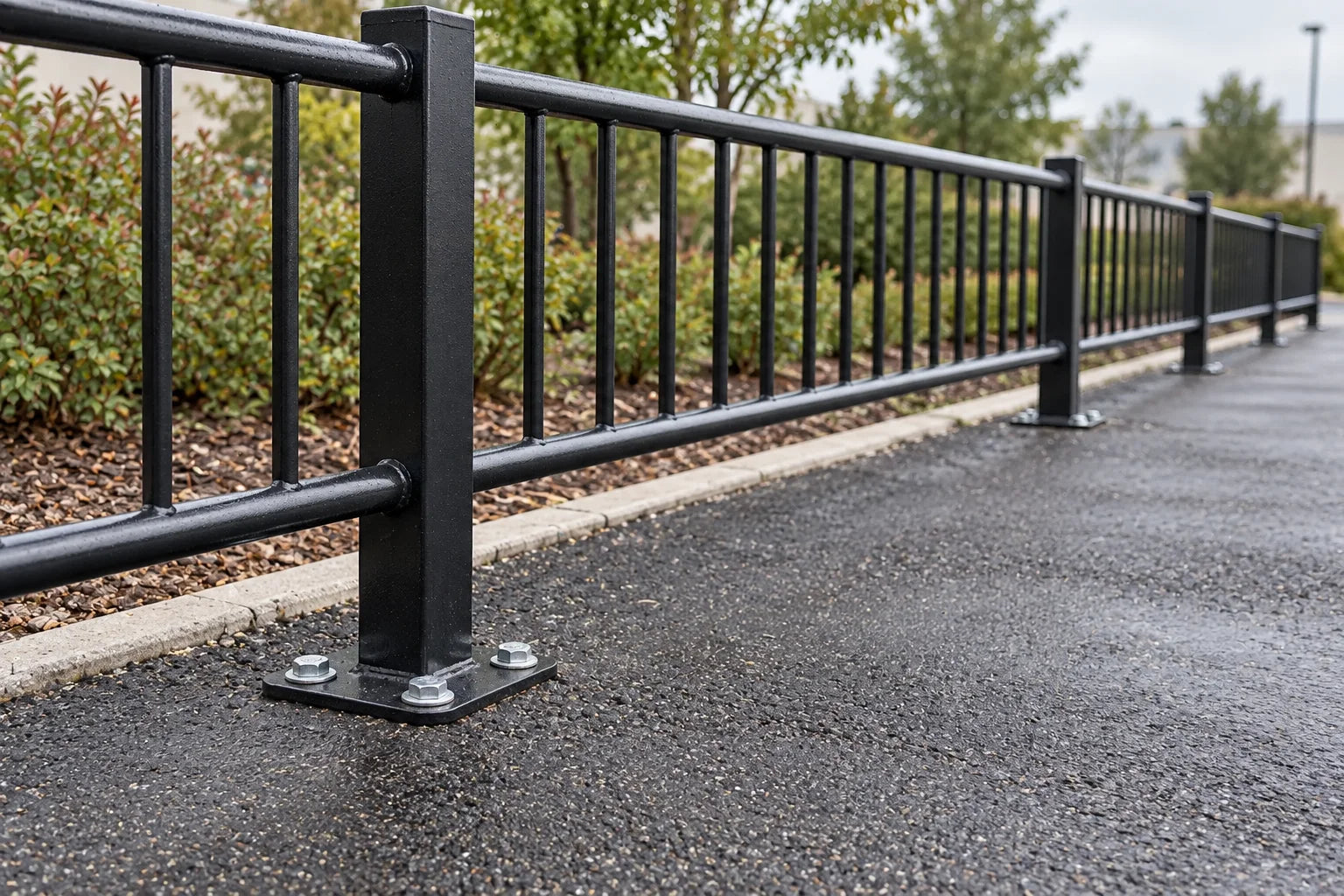

  • Railings and Guardrails
  • Bus Shelters
  • Equipment Platforms
  • Static Discharge poles
  • Bleachers
  • Oil Drums tiedown
  • Solar Panels
  • Outdoor Furniture
  • Steps
  • Cable troughs
  • Rifle Cleaning Tables

LIMITATIONS

Asphalt will resist significant short-duration loads.  However, if continuous pull is applied to the anchors especially at elevated temperatures, the pull resistance of the anchors needs to be derated.  See "SPxx Installation Guide.pdf" for more information.

PRICES

Click to access our onine catalog and eStore for prices, availability and shipping costs.

prices icon

News

Scott Timms Canadian Representative

Scott Timms, a veteran sales agent in Canada for the fastener industry, has become AAG's representative for Canada. Scott will undertake to add stocking distributors for AAG anchors throughout Canada. KIK Building Products, inc. Scott Timms (204) 894-3621 This email address is being protected from spambots. You need JavaScript enabled to view it.
